Methacrylate-Modified Resin for High-Frequency Communication Materials: Improving CCL Adhesion and Low-Dielectric Performance

Exploring Key Solutions for High-Frequency, High-Speed Electronic Materials: From Low Dielectric Loss and Thermal Stability to Processability



Signal Loss Challenges in the 5G/6G Era



With the evolution from 5G to 6G communications and the expansion of millimeter-wave technology into the terahertz (THz) frequency spectrum, electronic devices are entering a new era characterized by ultra-high-speed and high-capacity data transmission. However, high-frequency signals experience significant attenuation and energy loss when propagating through transmission media. To overcome this fundamental physical limitation, the development of printed circuit boards (PCBs) and copper clad laminates (CCLs) has increasingly focused on incorporating advanced materials with extremely low dielectric constant (Dk) and ultra-low dielectric loss factor (Df).



In past formula designs, traditional low-dielectric materials, such as pure polyphenylene ether (PPE) resins, offered excellent electrical properties but suffered from inherent drawbacks. It’s inherently rigid backbone often resulted in excessive brittleness after curing, while the low polarity of these resins generally led to poor adhesion to substrates such as copper foil. As modern manufacturing environments become increasingly diverse and demanding, a single resin system can no longer satisfy all required performance criteria.





Structural Innovation: Clever Utilization of Steric Effects

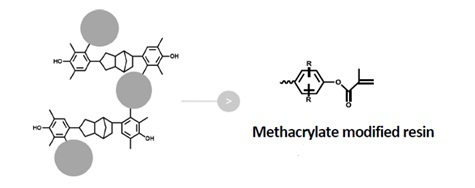

To overcome the technical limitations, "methacrylate-modified resins" have emerged as a promising solution in recent years. These resins utilize a free-radical curing system, with their primary advantage stemming from sophisticated molecular design. By introducing specific "steric effects" into the polymer backbone, researchers have successfully enhanced material flexibility while maintaining outstanding electrical performance.





This breakthrough in microstructure enables a more balanced overall performance. The material effectively minimizes signal delay and attenuation at high frequencies, delivering excellent low-dielectric characteristics while addressing the brittleness and processing challenges commonly associated with conventional high-frequency laminates. Furthermore, the modified structure improves the adhesion limitations typically observed in low-polarity resin systems. Combined with excellent thermal resistance and a low coefficient of thermal expansion (CTE), the material maintains superior dimensional stability even under high-temperature processing conditions.





Tailored Performance Through Molecular Weight Control



To meet the requirements of various formulation systems, these resins can be synthesized with precisely controlled molecular weight (Mw) and functional group density, resulting in distinct performance profiles:



• Low Molecular Weight Type (Mw ~300–400): Exhibits low viscosity and high fluidity at room temperature. In formulations, it can serve as a reactive diluent with exceptionally high reactivity, providing very low dielectric loss while significantly enhancing adhesion to various substrates.



• Standard Balanced Type (Mw ~600–700): Offers a balanced performance profile between the low- and high-molecular-weight grades, achieving an optimal balance among thermal resistance, dielectric properties, and mechanical adhesion.



• High Molecular Weight Type (Mw ~800–1,000): Featuring the highest functionality in the product series through a multifunctional crosslinking design, it enables exceptionally high glass transition temperatures (Tg). It is specifically developed for advanced applications demanding outstanding thermal resistance and dimensional stability under stringent operating conditions.





Practical Formulation: Synergistic Effects with Polyphenylene Ether (PPE)



In industrial formulations, methacrylate-modified resins typically serve as crosslinkers, working synergistically with commercial PPE resins.



Taking OPE-2St 2200 resin as an example, its copper foil peel strength after standalone curing is only 0.21 kgf/cm. However, when blended at a 1:1 ratio with a low-molecular-weight methacrylate-modified resin, the overall material performance improves dramatically:

• Significant Improvement in Adhesion: Copper foil peel strength increases from 0.21 kgf/cm to 0.47 kgf/cm
• Enhanced Electrical Performance: Dielectric constant (Dk) can be reduced to 2.58. Besides, dielectric loss factor (Df) can reach an ultra-low value of 0.0026.



When a high-molecular-weight modified resin is incorporated instead, the system's glass transition temperature (Tg) can be increased to 231°C, compared to 183.8°C for pure PPE, representing a substantial improvement in thermal resistance.



Furthermore, in conventional ternary systems containing TAIC (triallyl isocyanurate) as a crosslinking agent, the addition of methacrylate-modified resin continues to demonstrate excellent performance. The system can maintain a Tg of approximately 200°C while keeping Df within the ultra-low range of 0.0025–0.0030.





Conclusion



As next-generation communication devices demand thinner form factors, greater bandwidth, and lower latency, methacrylate-modified resins provide an effective solution to the longstanding trade-offs among low dielectric properties, strong adhesion, and material toughness.



Through innovative steric-hindrance molecular design and flexible selection of molecular weight grades, these resins enable material engineers to push beyond traditional formulation limitations, offering powerful support for the continued evolution of high-frequency, high-speed electronic substrates.
