Nano-Particle Electroplating Primer for Solving Adhesion Challenges in Glass Substrate Metallization Processes

With the exponential growth in chip processing speed and data transmission bandwidth demanded by AI servers, High-Performance Computing (HPC), and data centers, semiconductor packaging technologies are undergoing a fundamental material transformation. For decades, organic packaging substrates such as FR-4 resin materials have dominated the market. However, their inherent physical limitations have created bottlenecks in high-density fine-line routing, dimensional stability, and high-temperature resistance.

In this context, Glass Core substrates have emerged as the ideal core material for advanced semiconductor packaging and next-generation electronic components due to their exceptionally smooth surface, superior dimensional stability, low dielectric loss, and outstanding heat resistance. Nevertheless, glass itself is considered a “difficult-to-plate material.” Establishing metal circuitry with high adhesion, excellent conductivity, and cost efficiency on its highly smooth and chemically inert surface has long been a major technological challenge for the industry.

The emergence of a new "Nanoparticle Electroless Plating Primer Technology" is now providing a breakthrough solution for metallization on glass and various difficult-to-plate substrates. This technology departs from conventional approaches such as substrate roughening or costly Physical Vapor Deposition (PVD), delivering revolutionary improvements for next-generation semiconductor packaging and high-frequency transmission through its unique material characteristics and simplified processing methods.

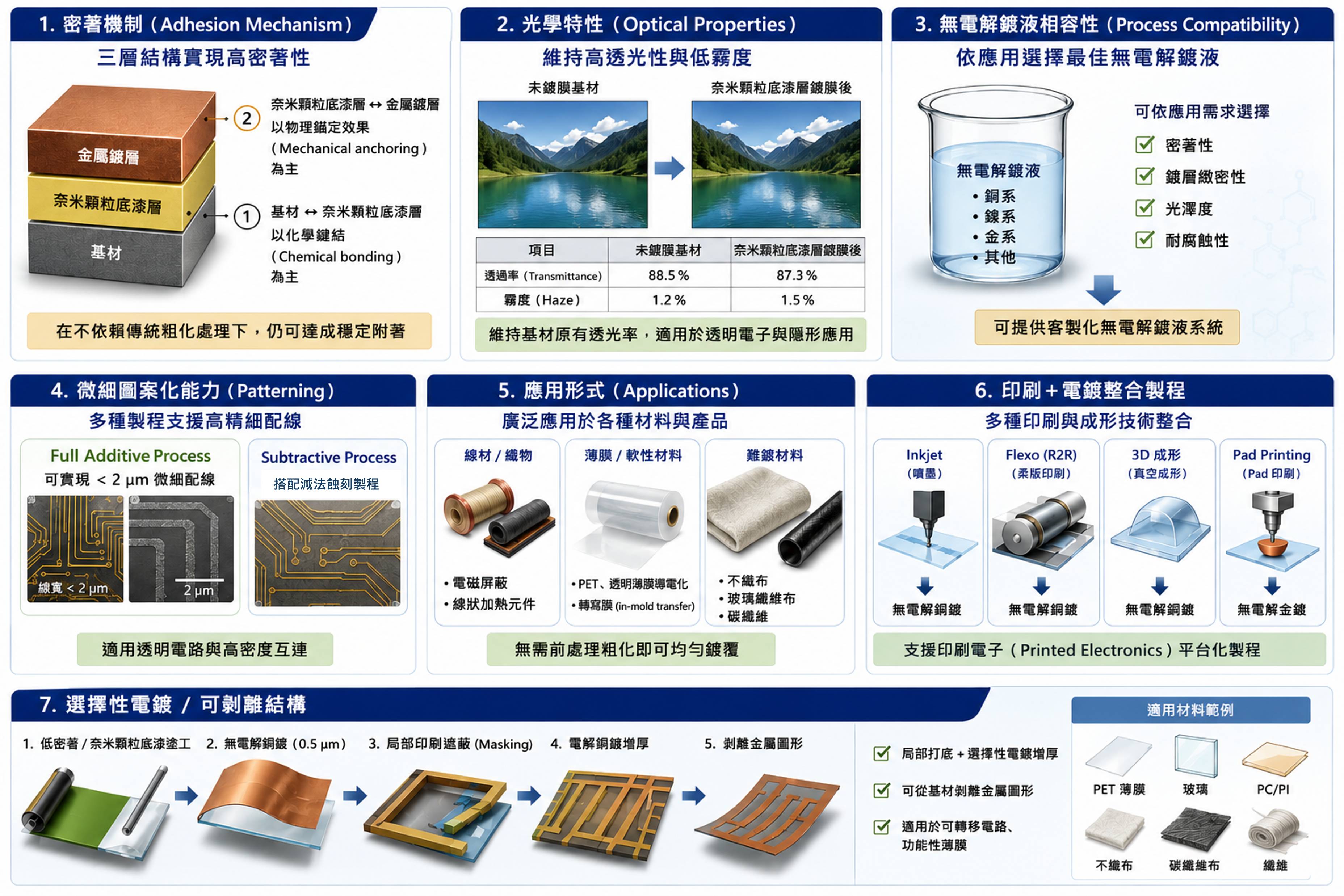

Core Material Features: The Perfect Combination of Dispersion Stability and High Reactivity

At the heart of this innovative plating primer lies its advanced microstructural design. It functions as a plating precursor (undercoat) material that promotes electroless metal deposition on a wide range of substrates. Once coated onto resin, ceramic, or other substrate surfaces and dried, a metal layer can be deposited simply by immersing the substrate into an electroless plating bath.



Compared with conventional resin plating technologies, which struggle to process low-dielectric materials, this primer still achieves excellent plating adhesion. In addition, it can provide anti-reflection functionality without requiring extra layers. Since no roughening treatment is necessary and the interface remains smooth, transmission loss under high-frequency conditions can be significantly reduced while improving surface current conduction efficiency.



This material offers exceptionally low transmission loss suitable for Beyond 5G to 6G high-frequency communications, making it a key enabling material with unique competitive advantages.





Four Major Process Advantages: Breaking the Physical Limitations of Conventional Plating



Compared with existing sputtering processes or traditional electroless plating pretreatments, this nanoparticle primer demonstrates unparalleled process advantages:



1. Extremely Simplified Process Flow

Traditional electroless metallization processes are highly complex, typically involving degreasing, multiple rinsing steps, acid cleaning, activation, reduction, and many other procedures. These processes consume large amounts of water and require complicated process control. In contrast, this nanoparticle primer process requires only three essential steps: “Coating → Drying → Plating” This dramatically shortens production line length and manufacturing cycle time.



2. No Substrate Roughening Required (Non-Roughening)

Conventional chemical plating relies heavily on surface roughening to create mechanical adhesion through the anchor effect. However, rough interfaces severely degrade high-frequency signal transmission by intensifying the skin effect and increasing signal loss. This technology completely eliminates the need for substrate roughening while maintaining the original ultra-smooth surface of glass or resin substrates. Through specialized adhesive components within the primer, extremely high-density chemical and physical bonding can still be achieved with difficult-to-plate materials.



3. Low-Temperature, Low-Energy Processing Below 150°C

Many high-performance primers or nano-colloids, such as certain copper nano-colloids, require high-temperature sintering after coating to achieve conductivity or adhesion, limiting their use on heat-sensitive resin substrates. This nanoparticle primer can be processed at temperatures below 150°C, significantly reducing energy consumption while greatly expanding substrate compatibility.



4. Easy Adaptation to Large-Area and Pattern Printing

Thanks to its excellent printability, this primer can be readily applied to large-area and large-format substrate manufacturing. Through coating or patterned printing processes, circuit patterns can be precisely formed only in designated regions, enabling selective local plating. This effectively reduces material waste while achieving both high performance and low cost.

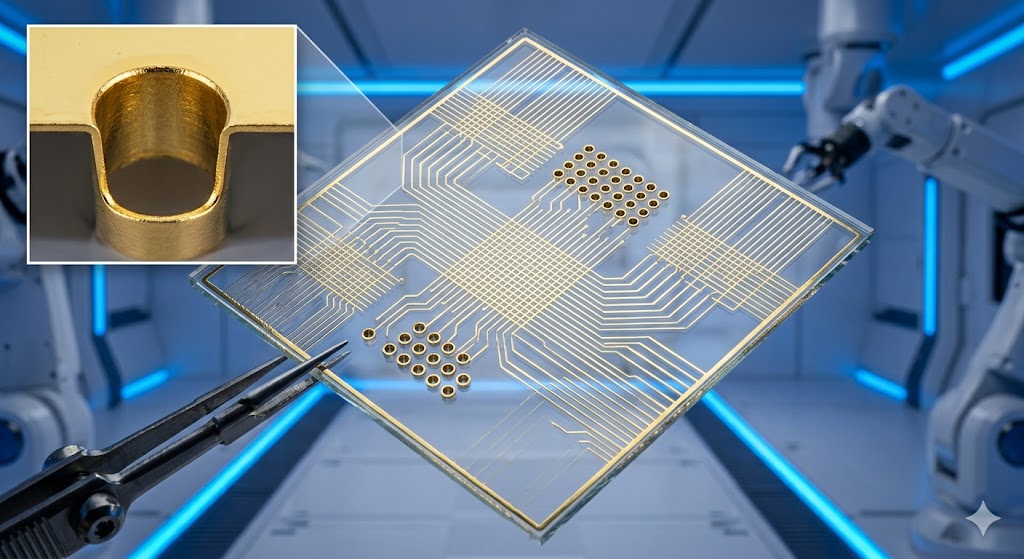

Next-Generation Semiconductor Packaging Applications: The Key to Through-Glass Via (TGV) Technology



Among semiconductor interposer and packaging substrate applications, the strategic value of this primer on Glass Core substrates is particularly significant.



Traditionally, silicon interposers (TSV) have been widely adopted for their excellent dimensional stability and heat resistance, but their costs remain high and alternative materials are limited. Organic interposers (resin-based), while less expensive, suffer from inferior dimensional stability and dielectric properties. Glass interposers (TGV) perfectly bridge the advantages of both technologies — delivering silicon-like dimensional stability and heat resistance while significantly reducing costs.



In this application, the nanoparticle primer demonstrates exceptional edge coverage and magnetic permeability. Even under extreme conditions involving micro Through-Glass Vias (TGVs), such as via diameters of Ø50 μm, substrate thicknesses of 300 μm, and aspect ratios as high as 1:6, the primer can smoothly penetrate deep high-aspect-ratio via walls and form continuous, uniform, and homogeneous thin layers along the via edges and inner surfaces.



As a result, subsequent electroless copper plating — such as ultra-thin 300 nm copper layers — can be deposited uniformly, enabling reliable metallization of high-density, fine-pitch feedthrough electrodes with pitches as narrow as 100 μm. This greatly enhances semiconductor chip packaging density.







Expanded Market Applications: From High-Speed Transmission to Smart Living



Beyond semiconductor packaging substrates, this technology's core advantages — preserving the substrate's original dielectric properties and enabling low-temperature large-area processing — are driving rapid development across numerous high-speed transmission and optoelectronic frontier applications:



• Touch Sensors: Utilizing ultra-fine wiring capabilities without surface roughening, nearly invisible conductive mesh patterns can be formed on glass or transparent films.
• Transparent Antennas: With the arrival of the 5G/6G high-frequency communication era, communication components increasingly need to be integrated into architectural glass and automotive windows. This technology enables precise printing of high-performance high-frequency antennas while maintaining substrate transparency and low dielectric loss.
• Transparent Heaters: Applicable to automotive windshields and polar exploration equipment for defogging and anti-icing, providing uniform and efficient heating while preserving optical clarity.
• Metasurfaces: In optics and metamaterials, the fine-patterning advantages of this primer and plating process enable the fabrication of highly precise micro/nanostructures on glass and other substrates for controlling electromagnetic or optical wave propagation characteristics.





Conclusion



This innovative nanoparticle electroless plating primer technology successfully overcomes the long-standing “impossible triangle” of achieving high adhesion, high smoothness, and low-temperature low-cost processing simultaneously in material science.



It not only simplifies traditionally complicated metallization processes, but also establishes a solid foundation for the widespread commercialization of Glass Core substrates in AI servers, data centers, switches, and advanced semiconductor PKG substrates.



As demand for high-frequency transmission and ultra-fine circuitry continues to accelerate, this process technology is poised to become a critical driving force behind the future evolution of next-generation electronic material metallization.



For further information or technical discussions regarding related applications, please feel free to contact us.
