The key to addressing high-frequency signal impedance distortion and solder joint failure: Low-Dk solder joint protection adhesive

The key to addressing high-frequency signal impedance distortion and solder joint failure: Low-Dk solder joint protection adhesive



As connectors enter the 5G/6G era, the dispensing process has become a key factor affecting product performance~

In the era of 5G millimeter-wave and high-speed computing architectures, manufacturers of high-frequency connectors and cable assemblies are facing multiple challenges—from sudden impedance drops and excessive high-frequency losses to solder joint cracking and failure caused by insufficient stress buffering of adhesive materials during reliability testing.

For high-frequency applications such as High-Speed I/O, Board-to-Board, and Wire-to-Board, traditional UV adhesives will significantly weaken product advantages.

We provide solder joint protection solutions designed for both "signal integrity" and "mechanical strength."

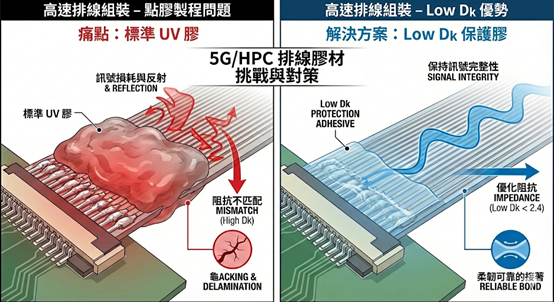

1. Protecting Signal Integrity: Impedance Matching Advantage Brought by Extremely Low Dk



High-frequency signals are highly sensitive to dielectric materials. The dielectric constant (Dk) of general UV resin is usually relatively high (>3.0). After dispensing coverage, it is easy to cause a decrease in characteristic impedance, leading to signal reflection.



• Solution: special-grade protective adhesives with Low Dk (< 2.4) and Low Df (< 0.02).
• Benefit: making the adhesive nearly "invisible" in electrical properties, minimizing interference with high-frequency signals, and ensuring one-time pass in SI testing during mass production.



2. Strengthening Solder Joint Protection: Stress Release Mechanism with High Elongation (High Tensile Strength)



Connector cables need to withstand bending and insertion/extraction stress during assembly and use. If the protective adhesive is too brittle (low elongation) or only emphasizes low CTE, it often leads to adhesive cracking under dynamic conditions, and may even cause solder joint breakage.



• Solution: Possessing high elongation (high tensile strength) and excellent toughness.
• Benefit: after curing, the adhesive acts like a tough "buffer layer," effectively absorbing stress during cable bending, preventing stress transfer to fragile solder joints, and significantly improving yield in tensile testing.



3. Conquering Low-Adhesion Interfaces: Exceptional Bonding to LCP and Dissimilar Materials



Widely used in 5G connectors, materials such as LCP (liquid crystal polymer) and gold-plated terminals feature inherently low surface energy, often resulting in pseudo adhesion after dispensing—where the material appears bonded but easily delaminates upon peeling.



• Solution: A specially formulated system delivers outstanding chemical bonding to LCP, nylon, metal contacts, and PCB solder masks, forming a hermetic, waterproof, and dustproof protective barrier.



Category	Kelly's Solution	Conventional UV Adhesives
Dielectric Properties	Ultra-low dielectric constant: Dk < 2.4	Dk typically ranges from 2.6 to 3.0
Cure Shrinkage	With ultra-low shrinkage below 3%, it significantly reduces stress-induced cracking and deformation in precision connectors	High shrinkage risk: Conventional acrylic systems exhibit 7%–10% shrinkage, generating internal stress that may lead to interfacial delamination or micro-cracking
Thermal Stability & Reliability	Wide temperature range & low expansion: • Operating range: -40°C to +150°C • Low CTE (70–110 ppm/K) reduces thermal cycling failure	Limited thermal resistance: typically only 80°C–100°C, with higher CTE, leading to softening, displacement, or sealing failure at elevated temperatures
Processability	Optimized for automation: • High thixotropy (TI = 4.8) • Excellent flowability for gap filling and micro-encapsulation	Narrow processing window Poor rheology control causes overflow or dispensing instability
Adhesion to Key Materials	Strong adhesion to FR-4, glass, metals, and plastics	Inconsistent adhesion; often requires primers or surface treatment
Curing Efficiency & Surface Finish	Fast curing (~10 sec), tack-free surface, LED compatible	Oxygen inhibition causes tacky surface; slower curing and higher process cost



If you are facing challenges such as unstable impedance after dispensing or insufficient solder joint reliability, we can work together on "adhesive material selection consulting" and "UV curing parameter optimization" to build your competitive advantage.
