A little helper for metal surface treatment: heterocyclic molecules--Triazole compounds

Key to Improving Metal "Corrosion" and "Adhesion" Issues: Triazole Heterocyclic Additives



In modern electronics industries, whether it is micro-scale semiconductor chips or the printed circuit boards (PCB) and copper clad laminates (CCL) that carry them, "interfacial chemistry" is always a core factor determining product quality. Metal materials (such as copper, silver, aluminum, tin, etc.) play a critical role in electron signal transmission across multilayer structures. Throughout various processing steps, these metals face different levels of corrosion challenges. At the same time, interfacial adhesion stability within stacked structures is equally crucial. In this context, heterocyclic compounds, with their unique molecular structures, play a key role in protecting metal surfaces and enhancing interfacial bonding at the microscopic level.



1. What are heterocyclic compounds?

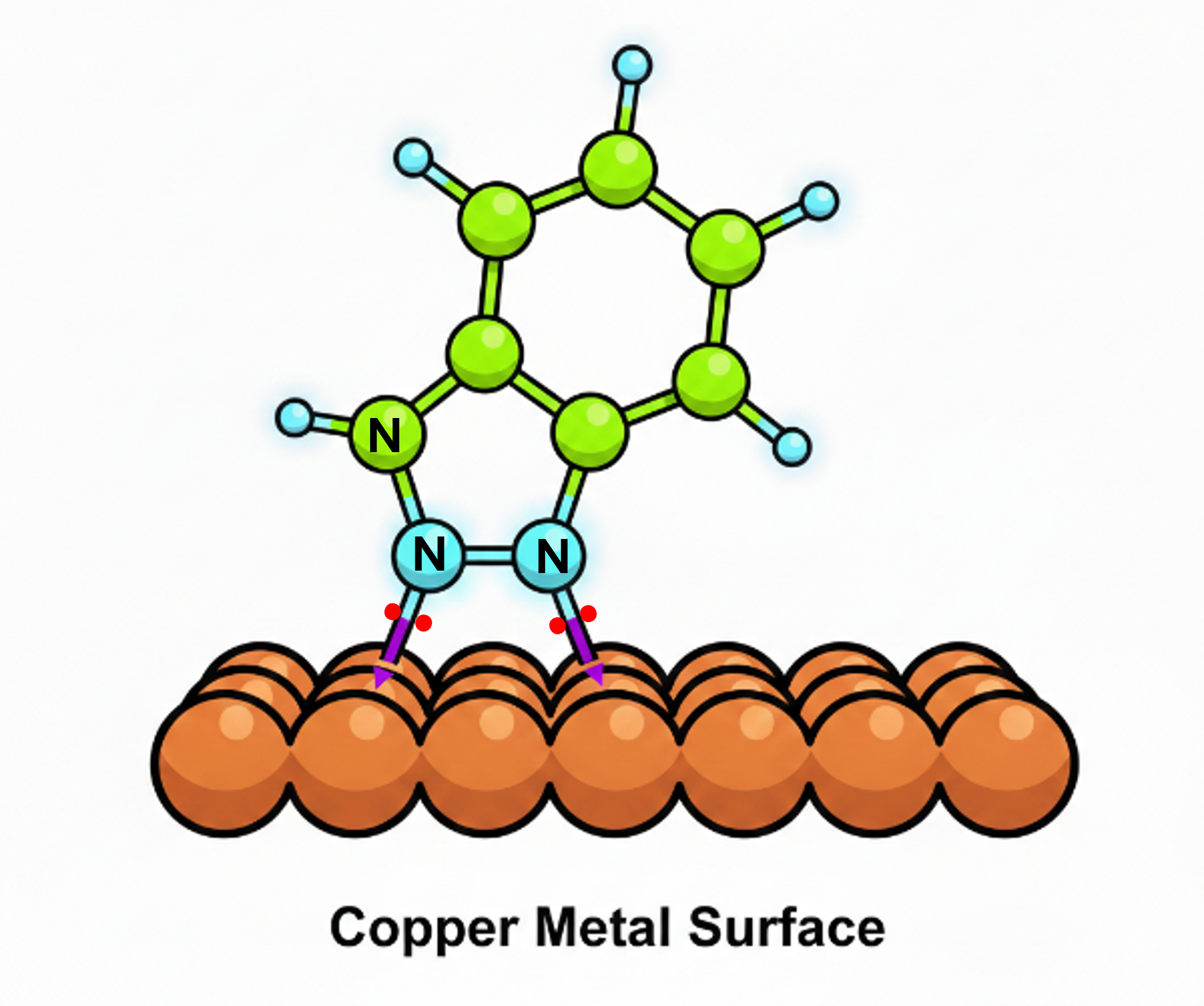

Heterocyclic compounds are cyclic molecules that contain atoms other than carbon in their ring structure, such as nitrogen (N), sulfur (S), or oxygen (O). In the electronics industry, the most well-known examples are benzotriazole (BTA) and its derivatives (such as CBT and TTA). These molecules interact strongly with metals because, in addition to their good compatibility and ability to form stable chemical interactions with organic resins, they possess "lone pair electrons" that can coordinate with metal atoms on the surface, forming strong coordination bonds. This allows them to firmly adsorb onto metal surfaces.





2. Microscopic "shield-bearing guardians": corrosion inhibitors

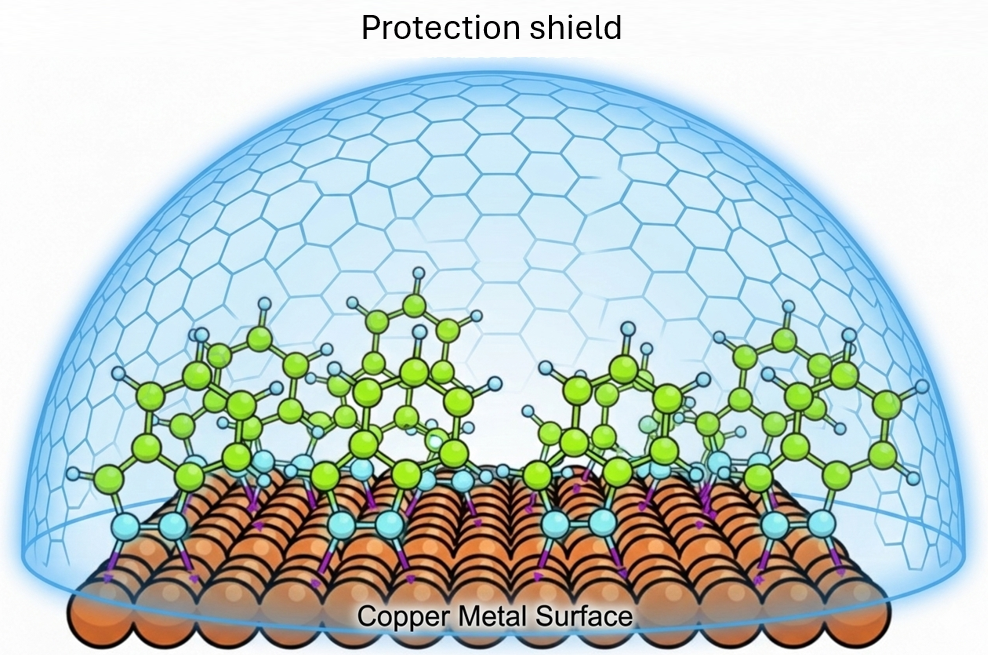

When metals are exposed to environmental conditions or chemical processing fluids, their surfaces undergo varying degrees of corrosion and dissolution. Corrosion is essentially an oxidation reaction. However, when heterocyclic small molecules first adsorb onto the metal surface, they act like soldiers standing in formation, raising shields to protect it. This protective film is only a few nanometers thick, yet it effectively blocks water, oxygen, solvents, and other corrosive species from the environment.



In semiconductor manufacturing, as line widths continue to shrink, the stability of copper (Cu) becomes increasingly vulnerable, making corrosion inhibition extremely important. For example, during chemical mechanical planarization (CMP), metal interconnects are exposed to corrosive slurry. At this stage, inhibitors such as BTA (benzotriazole) or its derivatives rapidly form a dense coordination-based protective layer on the copper surface. Although extremely thin, this film acts like a waterproof coating, isolating oxidants and moisture from attacking the metal surface. It prevents trenching or uneven etching of copper lines, ensuring stable electrical signal performance.





3. Microscopic "bridges connecting two worlds": adhesion promoters



When moving from semiconductor chips to packaging processes, PCB, and copper clad laminates (CCL), heterocyclic compounds shift roles to that of molecular "connectors." In packaging or multilayer circuitry processes, poor adhesion often exists between inorganic metals (copper) and organic resins. To prevent delamination, triazole-based heterocyclic derivatives are used as adhesion promoters.

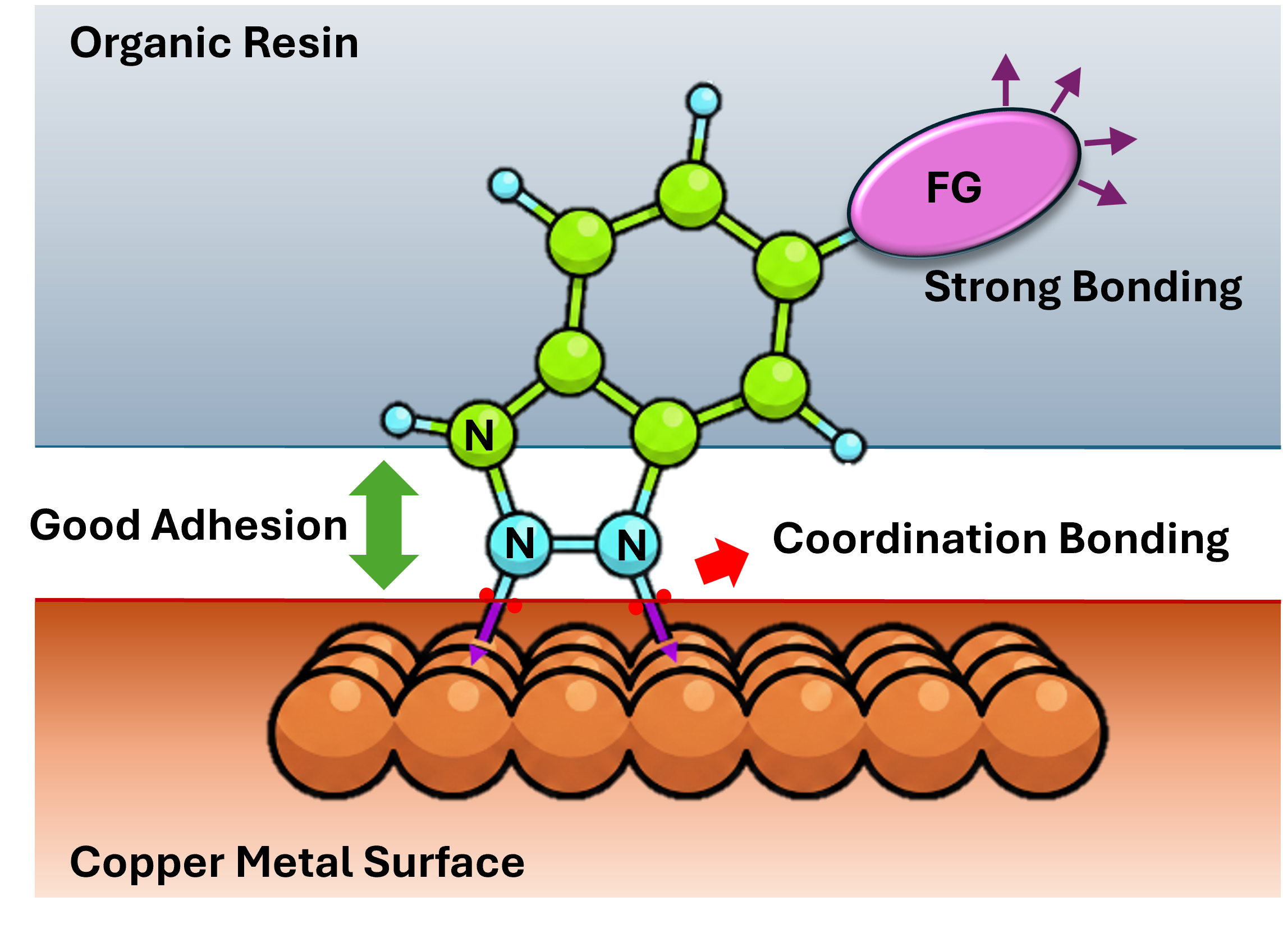

One end of the molecule, through its heterocyclic structure (such as a triazole ring), strongly anchors to copper. The other end either reacts with resin functional groups or interacts through compatible organic moieties. This dual interaction significantly improves the stability of CCL under high temperature and high humidity conditions.



In PCB manufacturing, copper traces undergo repeated etching and cleaning processes. Materials with such structures not only protect fine lines from excessive side etching but also enhance adhesion between solder mask layers and copper traces, preventing peeling during subsequent high-temperature soldering.





With the development of 5G communications, artificial intelligence (AI), and high-performance computing (HPC), electronic components are facing increasingly stringent requirements for heat resistance and signal integrity. These electronic-grade heterocyclic materials, through precise molecular-level design, solve two major challenges in the semiconductor and PCB industries: "metal corrosion" and "interfacial failure."



Although invisible in the final products, it is these "heterocyclic small molecules" that enable the long-term reliability and stability of modern technologies.
