Df Just Got Smarter: Boosting Speed, Stability, and Efficiency with Ultra-Low Dielectric Fillers



In an era of rapid advances in AI computing power, materials are quietly rewriting the future.



Since applications such as generative AI, large language models, and high-frequency trading have placed unprecedented computing demands on data centers, a new generation of 800G high-speed switches has adopted more advanced hardware architectures. This is not merely a race in chip performance, but also a material revolution focused on “signal integrity” and “thermal performance.” To address the challenges of high frequency, high power consumption, and high-speed transmission, conventional materials used in copper-clad laminates have gradually been replaced by new options with lower dielectric constant, lower loss, and higher thermal stability. We can observe this evolution in multiple aspects: glass fiber cloth progressing from Low Dk1 to Low Dk2, resins shifting from traditional epoxy to hydrocarbon/polyphenylene ether, and fillers evolving from silica/alumina to low-dielectric particles/boron nitride.







Ultra-Low Dielectric Fillers—The Invisible Key Player in the High-Speed Era



Have you ever wondered why mobile signals can travel so fast, or how 5G and autonomous vehicles manage to handle such enormous amounts of data? In fact, all of this relies on the quiet contribution of signal transmission materials within electronic components. In recent years, a new type of ultra-low dielectric particulate material, developed specifically for high-speed communication applications, has quietly become the unsung hero behind the next generation of electronic devices.





What makes it so remarkable?



Ultra-Low Dielectric Fillers enables signals to travel faster and more stably through materials while reducing energy loss. Key features are as follows:



1. Extremely Low Dielectric Constant and Loss



Its dielectric constant (Dk) is as low as 2.01 (@10 GHz), and dielectric loss (Df) is as low as 0.0005 (@10 GHz), far below conventional fillers. This effectively reduces high-frequency signal attenuation and enhances component efficiency.



2. Ultra-Fine, Uniform Particles



Particle diameter is approximately 0.2–0.4 µm, allowing uniform dispersion in various polymers or resins. The particles do not easily agglomerate or settle, ensuring stable material properties.



3. Excellent Dispersibility and Processability



Maintains stable suspension and good dispersion even when mixed with solvents or resins of different polarities. Makes processing easier and ensures consistent quality.



4. High Purity, Low Water Absorption, and Thermal Stability



Suitable for most thermosetting and thermoplastic resin systems. Balances performance with reliability.





Applications:



• High-Frequency PCBs and High-Speed IC Substrates

Reduces overall dielectric constant and loss, supporting 5G, AI, HPC, and other high-speed applications.



• Semiconductor Packaging Materials

When added to packaging resins, improves signal integrity and reduces crosstalk.



• Antenna Structures and Millimeter-Wave Components

Ensures stable signal transmission and minimizes energy loss.



• Low-Loss Optoelectronic Component Materials

Used in light-guiding structures, sensor modules, or radar systems to provide precise and rapid response.





Why Is It Becoming Increasingly Important?



As future electronic products evolve toward higher speed, smaller size, and greater functionality, many traditional fillers — such as talc or silica powder — are reaching their performance limits in high-frequency applications.

In contrast, new-generation ultra-low dielectric particles, featuring low Dk, low Df, and excellent dispersibility, are emerging as key ingredients for next-generation electronic materials.





Who Should Use This Material?



• If you're designing resin formulations for high-frequency communication.

​

• If you’re developing encapsulation resin, underfill, prepreg, or antenna substrates.



• If you care about signal integrity (SI), electromagnetic interference (EMI) control, or need to meet high-speed transmission standards (such as PCIe Gen5 or USB4).





Invisible, Yet Indispensable



Although this material isn't as visible as a chip or antenna, its role is like a quiet but steady booster—helping high-speed signals run freely and smoothly through circuits without obstruction.

As electronic devices continue to demand faster and more stable performance, these low-dielectric particles represent a crucial step toward that future.







The Secret Weapon Behind High-Speed Transmission: Ultra-Low Dielectric Particle Material



A high-performance filler tailor-made for the 5G, AI, and autonomous driving era.





Specifications Overview



Item	Data / Description
Particle Size	0.2–0.4 μm (narrow distribution, spherical shape)
Dielectric Constant (Dk @10 GHz)	Approx. 2.1
Dielectric Loss (Df @10 GHz)	Approx. 0.0005
Water Absorption	≤ 0.1%
Dispersibility	Highly dispersible; compatible with both solvent-based and emulsion systems

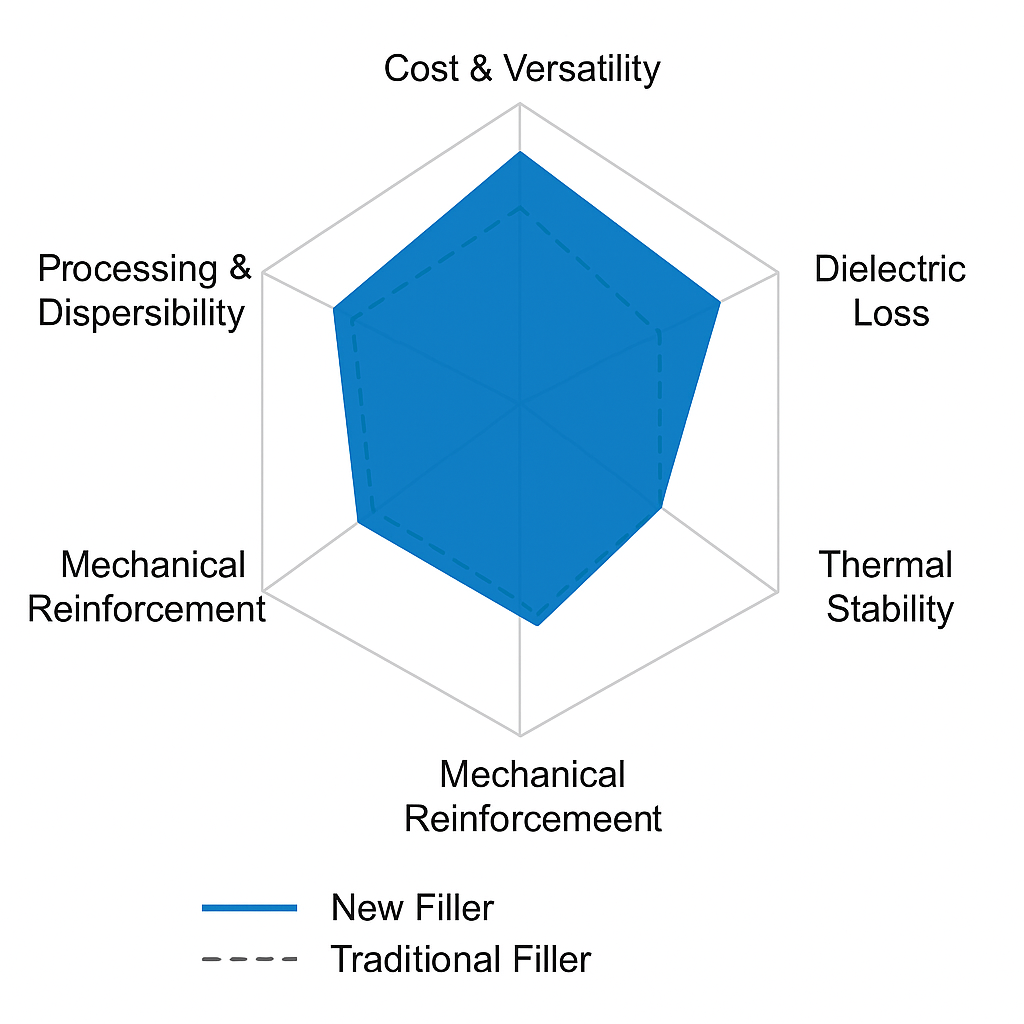

Comparison with Traditional Fillers



The table below shows the performance comparison between ultra-low dielectric particles (New Filler) and traditional fillers (such as talc or silica powder) in high-speed applications:



Property	Ultra-Low Dielectric Particles (New Filler)	Traditional Fillers
Dielectric Loss (Df)	Very low	High — unsuitable for high-speed signal transmission
Thermal Stability	Stable and non-deforming under high-temperature processing	Poor — easily deforms or degrades at elevated temperatures
Dispersibility	Excellent — easy to process and resistant to agglomeration	Poor — prone to uneven mixing or sedimentation issues







Application Case Studies



Case 1: High-Speed IC Substrate Prepreg



A PCB material manufacturer sought to improve transmission efficiency and signal integrity in its high-speed product line.

However, traditional silica fillers exhibited increased loss and noticeable signal attenuation at frequencies above 10 GHz.

After switching to this material:

• Signal delay reduced by 8%, with approximately 0.3 dB lower loss (@15 GHz)
• Material flowability and film-forming properties remained unchanged
• Lamination yield in downstream processing improved

✅ Applicable Resin Systems: BT resin, epoxy, PI, and related resin formulations





Case 2: Semiconductor Packaging Materials (EMC / Underfill)



For high-frequency AI chip packaging, manufacturers required a filler that offered both low Dk and dimensional stability.

Traditional inorganic fillers tended to agglomerate after micronization, reducing flowability.

After switching to this particle material:

• Dk decreased to 2.3 (compared to 3.6 with the previous filler)
• Excellent viscosity control — no need to add extra solvent
• Warpage after reflow reduced by 15%
• Passed JEDEC thermal cycling test (500 cycles) with no abnormalities

✅ Applicable Resin Systems: EMC resin, low-CTE materials, epoxy systems





Summary



As the electronics industry moves toward higher speed, higher frequency, and greater miniaturization, an invisible revolution is taking place — the evolution of fillers.

These ultra-low dielectric particle materials not only preserve the processability of existing formulations but also significantly reduce signal interference and energy loss during transmission, making them the true driving force behind many critical applications.
